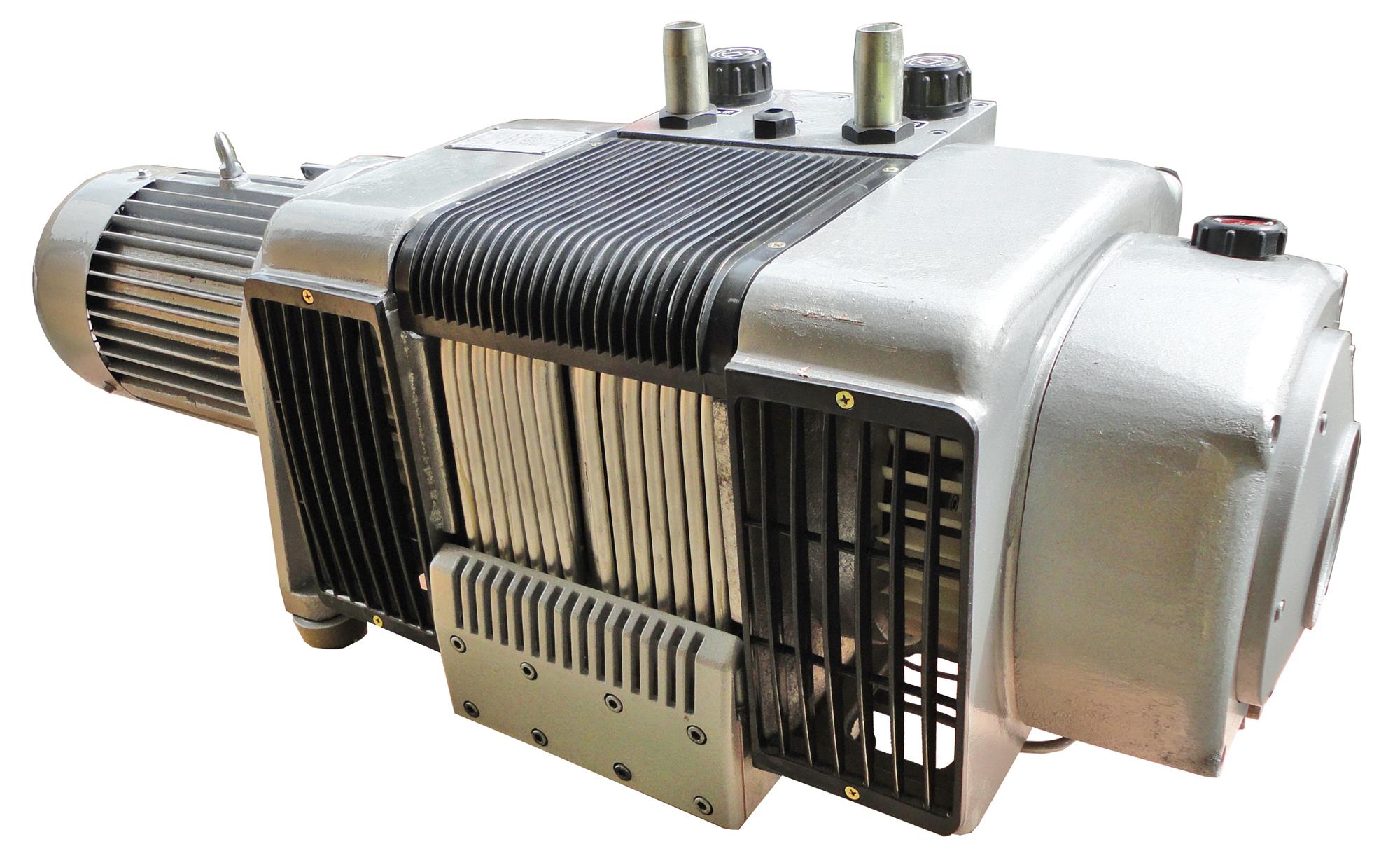

Tideway Vacuum Pump ZYB-130A

Home » Products » Blower & Vacuum » Vacuum Pump » Vacuum & Pressure

Stock Code : 880220014
Brand : Tideway
Model : ZYB-130A
Description :
  • Displacement : 130 m3/ h
  • Rated Suction Vacuum : − 60 kPa ¦ 456 mmHg
  • Rated Supplement Vacuum : − 35 kPa ¦ 266 mmHg
  • Rated Pressure : 60 kPa ¦ 0.6 kgf / cm2
  • Temperature : 85 ° C
  • Outside Dia. Of Inlet & Outlet : G ½ G1 ¼ G1 ½
  • Overall Dimension (LxWxH) : 1213 x 407 x 450 mm
  • Weight : 210kg
  • Speed : 1440rpm
  • Motor Power : 5.5kW/3PH
Brochure : Click here
Manual : Click here
